JEC COMPANY - Rotary Pump JRZL

Rotary Pump JRZL

line

JRZL Feature

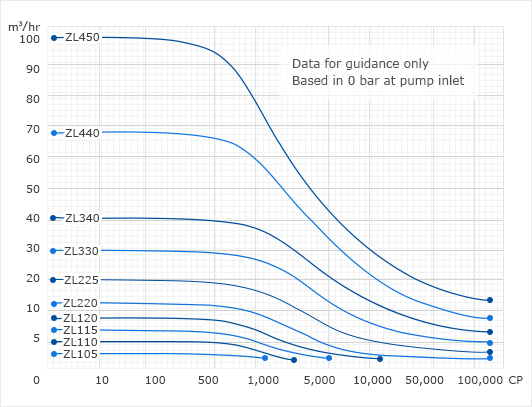

Performance Curve

JRZL Performance Curve graph

Model Litres/ rev Max Pressure bar Port mm Max Speed rpm
ZL105-002-20 0.02 20 25 1000
ZL110-005-20 0.05 20 25 1000
ZL115-012-12 0.12 12 38 800
ZL120-021-08 0.21 8 50 800
ZL220-040-12 0.40 12 50 700
ZL225-062-08 0.62 8 63 700
ZL330-102-12 1.02 12 76 600
ZL340-144-08 1.44 8 100 600
ZL440-227-12 2.27 12 100 500
ZL450-334-08 3.34 8 125 500
  • JEC Rotary Lobe Pumps are versatile for various application
  • Easy installation and maintenance
  • Approved EHEDG and 3-A, 1935/2004, FDA, CE and ATEX standards
  • Interchangeable rotor in field types without adjusting clearance
  • Thermal jacket hole plug mounted as optional
  • Single wing, bi-wing, tri-lobe, multi-lobe, heli-lobe, and spur-gear are available
  • Ideally designed for hygienic process are available and easily interchangeable in field to seal types due to unique front loading seal design
  • Mirror finish-standard 0.6 ㎛Ra optional 0.4 ㎛Ra (16Ra, 192grit)
  • Externally mounted seal for hygienic application
  • Balanced seal and multi-spring for rotary seal ring drive
  • Single mechanical seal, flushed mechanical seal, lip seal, O-ring seal, double mechanical seal
  • Maximum pressure : 290psi(20bar)
  • Maximum capacity : 440GPM(100 ㎥/hr)
